2011 Bimota DB6R is one motorcycle issued by the manufacturer Bimota with Tourbike edition which supported the body design is comfortable to use. 2011 Bimota DB6R has a engine capacity 1079 cc with Bore x Stroke 98.0 mm x 71.5 mm and than engine type Twin cylinder 90°.
2011 Bimota DB6R 1
2011 Bimota DB6R 2

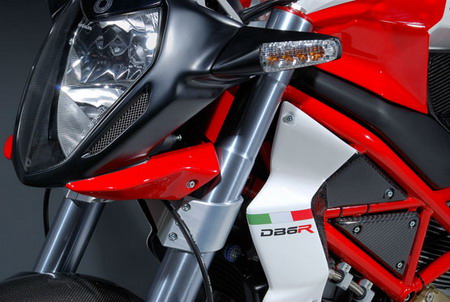

2011 Bimota DB6R 3
2011 Bimota DB6R 4
2011 Bimota DB6R 52011 Bimota S - International Specifications
USA MSRP - See dealer for pricing in USD
Canada MSRP - See dealer for pricing in CDN
European MSRP - €22,091
ENGINE
(DUCATI 1100 DS)
Engine Configuration: Twin cylinder 90°
Displacement: 1079 cc
Engine Cooling: air/oil cooling
Compression Ratio: 10±0.5:1
Valves per cylinder: 2
Bore x Stroke: 98.0 mm x 71.5 mm
Engine Redline: 8500 rpm
Valve Angle (Included): 28° Inlet / 28° Exhaust
Valvetrain Type: Desmodromic valve actuation
Intake Valve Diameter: Ø 40 mm
Exhaust Valve Diameter: Ø 35 mm
Intake Valve Timing: Open BTDC 15°; Closed ABDC 65°; Duration 260°
Exhaust Valve Timing: Open BBDC 62°; Closed ATDC 19°; Duration 261°
Fuel Pump: Bitron 3.5 bar, electronic
Throttle Body Size: 45 mm
Air Filter: Paper
Exhaust System: 2 in 1 in 2, inox
Injection: Walbro
Injectors: Magneti Marelli
Lubrication System: Wet Sump
Transmission Type: Dry clutch Multi-disc with hydraulic actuation system
Primary Drive ratio: 33/61
Final Drive ratio: 15/39
Transmission ratio: VI = 28/24; V = 24/23; IV = 22/24; III = 20/27; II = 17/30; I = 15/37
CHASSIS
Wheelbase: 1430 mm / 56.3 in
Steering angle: 24°
Swingarm length: 515±20 mm / 20.3±0.8 in
Seat height: 820 mm / 32.2 in
Footpeg height: 385 mm / 5.2 in
Handlebar height: 1040 mm / 40.9 in
Steering stem to seat center: 708 mm / 27.9 in
Overall length: 2045 mm / 80.5 in
Overall width: 830 mm / 32.7 in
Overall height: 1110 mm / 43.7 in
Ground clearance: 175 mm / 6.9 in
Front suspension: 50 mm Marzocchi UD fork TiN fully adjustable; stroke: 120 mm
Rear suspension: Extreme Tech Monoshock fully adjustable, compression low/high speed; wheel stroke: 120 mm
Front brake: Double Ø320 mm Braking floating disc, 4-pistons,4-pads with radial Brembo callipers
Rear brake: Ø220 mm Braking disc, 2-pistons, 2-pads with Brembo calliper
Front Wheel: 3.5x17.0 Al Alloy
Rear Wheel: 5.5x17.0 Al Alloy
Front Tyre: 120/70 ZR17, Continental Sport Attack
Rear Tyre: 180/70 ZR17, Continental Sport Attack
Fuel Tank Capacity: 16 l (5 l reserve) / 4.23 gal(US) (1.32 gal (US) reserve)
Dry Weight: 170 kg / 374.8 lbs
